MGL RF Products
- MGL Avionics keeps innovating into the market of aviation related RF instrumentation.
- The most recent product is the N16 NAV receiver, which can be combined with the V16 transceiver to provide a NAV/COM solution.
| | |
| Ref | Description | Availability |
| N16 | Remote NAVigation receiver |
June 18 |
| VHF-V16 | Remote 10W VHF Transceiver | November 17 |
| Razor NAV/COM Head | Razor NAV/COM control head | November 17 |
| Vega NAV/COM Head | Vega NAV and Vega COM control head | March 18 |
| VHF-V6R | Remote 6W VHF Transceiver | November 11 |
| VHF-V6 | 57mm VHF Transceiver | November 11 |
| VHF-V10 | 80mm VHF Transceiver | November 09 |
- Caution: These products have FCC but do not have TSO or ETSO. See our DELTA OMEGA website for TSO'd and EASA approved products.
|

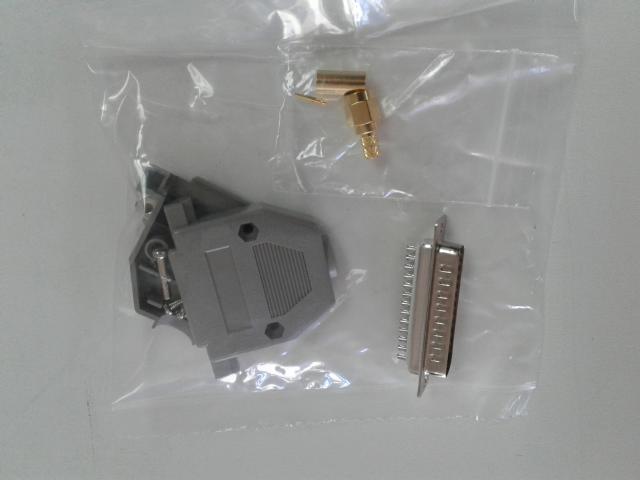

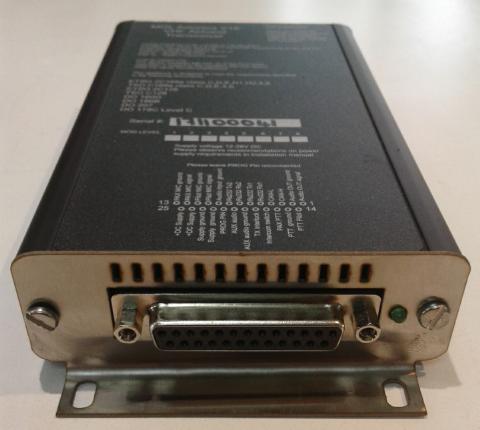

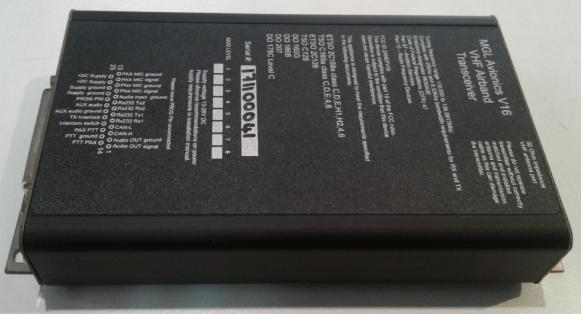

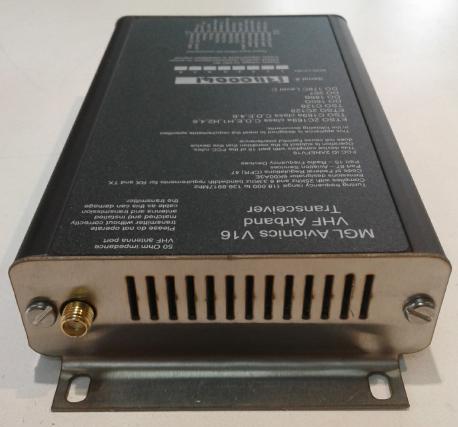

| VHF-V16 Airband transceiver | |
|
|
RAZOR NAV/COM control head
- Available since November 2017
- Razor NAV/COM 3.18” head for V16 and N16
- Complete your V16 and/or N16 system with a 3.18” format touch screen controller.
- Can be used as COM, NAV or combined NAV/COM control head.
- Note: Current Razor heads require a firmware update (using a PC and a USB/RS232 converter and free update application from MGL) to enable NAV functionality when the N16 is released.
- Weight : 160g approx.
- Download Razor NAV/COM 3.1/8" head for V16 and N16 (English):
Razor V16-N16 manual.pdf
- Ref : MG_Razor
- Subscribe to our
MGL newsletter
- Ask for a Catalog/Price list
Return to general description
|
|
RAZOR NAV/COM control head
- Seeking a standard 2"1/4 control head for your V16 or N16? The Vega head is your choice. Available February 2018.
- Note: The Vega head can be used either as COM or NAV head (not both at the same time due to limited screen area). You can connect two (or more) heads to a single V16/N16 combination.
- Complete your V16 and/or N16 system with a 2"1/4 format controller.
- Can be used as COM or NAV control head.
- Weight : 130g approx.
- Download Razor NAV/COM 2"1/4 head for V16 or N16 (English):
Vega V16-N16 manual.pdf
- Ref : MG_Veg_Head
- Subscribe to our
MGL newsletter
- Ask for a Catalog/Price list
Return to general description
|
| VHF-V6 57mm Air Band VHF Transceiver | |
|
|
V6 57mm Air Band VHF Transceiver
- Available since November 2011
- Caution: That product has FCC but does not have TSO or ETSO. See our site DELTA OMEGA for TSO'd products.
- 6W TX carrier power (unmodulated) .Typical Power at 13.8V (6.5-7W)
- 108.00 to 117.75 MHZ navigation channel RX (sound only, no navigation functions)
- 118.00 to 136.75 MHZ coverage (RX and TX)
- Sunlight readable LCD display
- 100 channels with alpha-numeric frequency name and function (when radio operated in channel mode)
- 10 frequency lists (Garmin/Icom communications compatible)
- Active and standby frequency/channel selection system or direct frequency selection modes
- Dual scan with priority on active using single transceiver
- SL30 and SL40 communications compatible with MGL extentions to enable full remote control of entire transceiver with status feedback
- Fully digital audio subsystem for excellent sound quality
- Dual circuit digital intercom system (Pilot and passenger circuit, each with own stereo audio output)
- Four place microphone circuit, each with own level control and noise suppression system. Assignable, 1+3 or 2+2 channels (dual circuit intercom)
- User selectable ambient noise suppression system and VOX modes:
a) Traditional VOX with adjustable level and fading mute
b) MGL Avionics propriety VOGAD ambient noise ellimination system.
- Switchable voice band filter for extremely high noise environments.
- Stereo music input with automatic fade down on intercom activity.
- Stereo outputs for each intercom circuit. Note: To make full use of the stereo intercom system, stereo headsets are required.
- Two auxilary audio inputs, mono, for mobile phone and EFIS annunciator
- Adjustable microphone levels with bargraph display of levels - easily adjust for best performance
- Pilot and passenger PTT circuits
- Pilot and passnger PTT join or isolate
- Audio output drives 8ohm speaker or 600 ohm headsets
- Fully digital class-D modulator for best in class power efficiency during transmit
- Excellent TX sound quality with digitally controlled modulation
- Highly accurate and stable fully digtal PLL frequency source
- Dual superhet receiver with 45Mhz 1st IF and 455Khz 2nd IF
- Bargraph display of received signal level
- Bargraph display of transmited audio level - see how well your TX carrier is modulated (visual sidetone)
- Field updatable software (requires PC with RS232) - subject to FCC restrictions
- PC based interface application available free. Maintain your frequency databases on your PC and upload if you prefer (requires Rs232 port or USB to Rs232 converter)
- Wide voltage range operation - 10V to 28VDC
- Super low power consumption: RX 120mA, TX 1.2A (at 13.8V DC)
- Fits standard 2 1/4" instrument hole.
- Very low weight: 250grams (~1/2 lbs)
- Very small mounting depth, only 10.7cm (4.2") plus connectors
- Zero internal adjustment and calibration during either production or service, no adjustable inductors, capacitors or anything else for long stability and service life
- V6 frequency list editor: (Windows, any 32 bit version)
This small program allows you to download and upload frequency lists to and from the V6 tranceiver. You can edit these lists and maintain several different lists if you like.
- Download the manual (English):
V6_Transceiver_Manual.pdf
- Download installation tips English):
Aircraft-Radio-Installation.pdf.pdf
- Ref : MG_VHF_V6
- Subscribe to our
MGL newsletter
- Ask for a Catalog/Price list
Return to general description
|
| VHF-V10 80mm Air Band VHF Transceiver | |
|
|
VHF-10 air band VHF transceiver
- MGL Avionics is proud to annouce its entry into the market of aviation related RF instrumentation.
- The first product in this segment is the VHF COM radio. This
"Maxi Single"
compatible device fits into a standard aviation 3.5" (3.1/8th hole) cutout.
- Caution: That product has FCC but does not have TSO or ETSO. See our site DELTA OMEGA for TSO'd products.
- 6W TX carrier power (unmodulated)
- 108.00 to 117.75 MHZ navigation channel RX (sound only, no navigation functions)
- 118.00 to 136.75 MHZ coverage (RX and TX)
- Large sunlight readable LCD display
- 100 channels with alpha-numeric frequency name and function
- Active and standby frequency/channel selection system
- Dual scan with priority on active using single transceiver
- Dual watch with priority on active using two transceivers connected to each other (one for active, one for standby frequency, full redundancy operation possible)
- Comprehensive dual communication links for fully redundant remote control from two independent EFIS panels
- SL40 communications compatible with MGL extentions to enable full remote control of entire transceiver with status feedback
- Fully digital audio subsystem using 18bit resolution CODEC for excellent dynamic range
- Dual circuit digital intercom system (Pilot and passenger circuit)
- User selectable ambient noise suppression system and VOX modes:
a) Traditional VOX with adjustable level and soft mute
b) Traditional VOX with adjustable level, soft mute and audio delay path
c) MGL Avionics propriety VOGAD ambient noise ellimination system. The best ever. Period.
- Switchable voice band filter for extremely high noise environments
- Auxilary audio input for EFIS or music systems (two inputs)
- Adjustable microphone levels with bargraph display of levels - easily adjust for best performance
- Pilot and passenger PTT circuits
- Pilot and passnger PTT join or isolate
- Audio output drives 8ohm speaker or 600 ohm headsets
- Fully digital class-D modulator for best in class power efficiency during transmit
- Excellent TX sound quality with digitally controlled modulation
- Highly accurate and stable fully digtal PLL frequency source operating at 5GHZ (DPLL)
- Dual superhet receiver with 45Mhz 1st IF and 455Khz 2nd IF
- Bargraph display of received signal level
- Bargraph display of transmited audio level - see how well your TX carrier is modulated (visual sidetone)
- Field updatable software (requires PC with RS232)
- PC based interface and simulation application available free. Maintain your frequency databases on your PC and upload if you prefer (requires Rs232 port or USB to Rs232 converter)
- Wide voltage range operation - 10V to 28VDC
- Super low power consumption: RX 120mA, TX 1.2A (at 13.8V DC)
- Large keys, no knobs - possible to operate with gloved hands, ideal for open cockpit aircraft
- Fits standard 3 1/8" hole (3.5" between mounting holes diagonal)
- Very low weight: 250grams (~1/2 lbs)
- Very small mounting depth, only 5.5cm (2.2") plus connectors
- Zero internal adjustment and calibration during either production or service, no adjustable inductors, capacitors or anything else for long stability and service life
- Low cost - best "bang for the buck" airband radio ever created
- A word of caution: this product does not have yet an EASA certification.
- Ref : MG_Max_VHFCOM
- Subscribe to our
MGL newsletter
- Ask for a Catalog/Price list
Do you want to try the MGL VHF-10? Its possible right now by downloading the simulation program (requires a PC running Windows NT, 2000, XP or VISTA) which simulates the operation of the VHF-10.
The simulator allows you to almost fully operate a virtual VHF-10. Perfect for learning how to use it without using a physical instrument, at home or at your club, !
"VHF-10 Simulator"" : Download installation program VHF10_Simulator_FR.exe Updated 02 sept 08 (BETA unfinished application)
Return to general description
|
|
|
|
|
 |
|
 |
|
|
